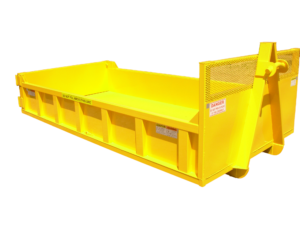

Truck Body Yellow Hook

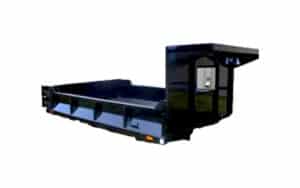

Truck Body Over CabBulk head

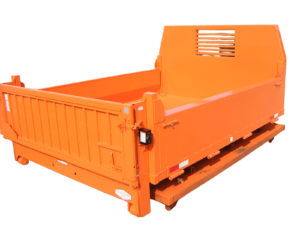

Truck Body Orange

Truck Bodies

STANDARD CONSTRUCTION

  • Available in any length, available in 96”W or 102”W
  • 3⁄16” floor
  • Industrial enamel primer & paint
  • Containers are delivered ready for use. Including: Caution/Warning decals, D.O.T. Reflective Tape & any Customer supplied decals

Understructure – Rolloffs

  • 3”H Structural channel 18” on center, with full 2”x3”x3/16” apron on Dump Bodies
  • 1¼” Thick solid bullnose inserted 2” into rails into 2”x6”x3⁄16” rails

Hook Styles

  • Cable-1½” Cable hook with ¾” thick plate & 4”Dia.x6”W Front Rollers with grease zerks & ½” thick support
  • Hook-2”x6”x3⁄16” A-frame with 2½” Dia. pin/bar & 5⁄8” thick hook plates
  • Deadlift

Available Options

  • Chain Hangers on Bulkhead
  • Tool Boxes & Power Winch
  • Heavy-duty 2”x6” Outer Rail Tubes
  • 2”x5” Skids with1”x2” Liners
  • 8” Dia.x10”W Rear Rollers
  • Bulkhead: Expanded or Solid Steel
  • D-ring Tie Downs
