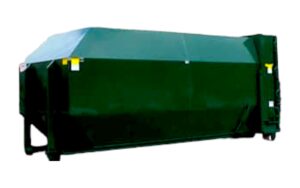

Octagon RecCable
Octagon Receivers
Octagon RecCable

Octagon Receivers

STANDARD CONSTRUCTION

  • 3/16” Floors, length determined by capacity
  • 8 Gauge sides, front, & roof
  • 3”x5”x3/16” Structural tubing used for back channel and roof supports
  • Industrial enamel primer & paint
  • Containers are delivered completely assembled & ready for use. Including: Caution/Warning decals, D.O.T. Reflective Tape & any Customer supplied decals

Understructure

  • 3”H Structural channel 18” on center, with full 3”H structural channel apron
  • 1⅜” Thick solid bullnose inserted 2” into rails into 2”x6”x3/16” rails
  • Rear Rollers – 8” Dia.x10”W with grease zerks & ½” thick wheel plate

Doors

  • Constructed with 12 gauge door sheet and frames of 3”x4”x3/16” tubing uprights & horizontal cross-members (No formed channel)
  • Extra heavy-duty door hinges with grease zerks. Each hinge assembly covers 1 linear
    foot of door surface
  • Guide support latch side of door
  • Door safety chain uses a heavy-duty quick snap with Ratchet latch system
  • Sealed Doors & Sealed Charge Opening doors available upon request
  • Pinning Tunnels & Bars are available upon request

Hook Styles

  • Cable-1¾” Cable hook with ¾” thick plate & 4” Dia.x6”W Front Rollers with grease zerks & ½” thick support
  • Hook-2”x6”x3/16” A-frame with 2½” Dia. pin/bar & ⅝” thick hook plates
  • Deadlift
